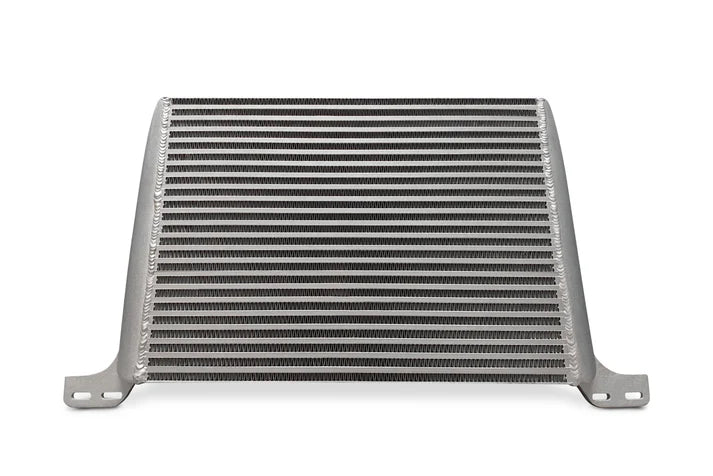

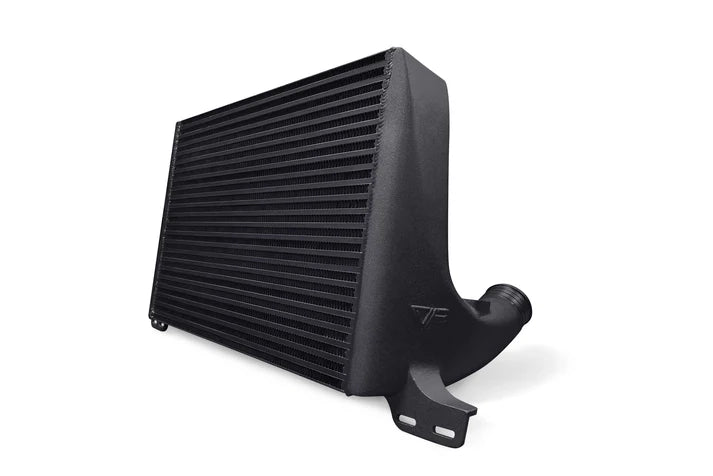

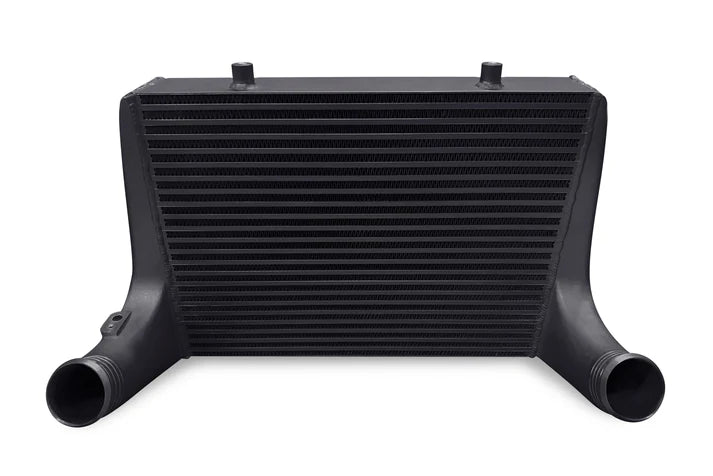

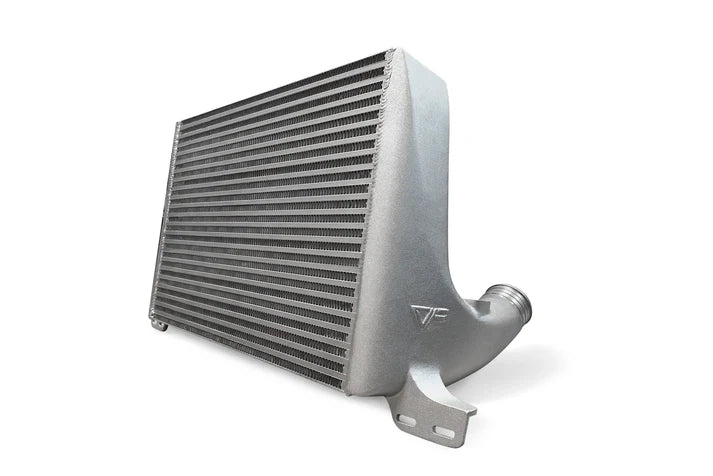

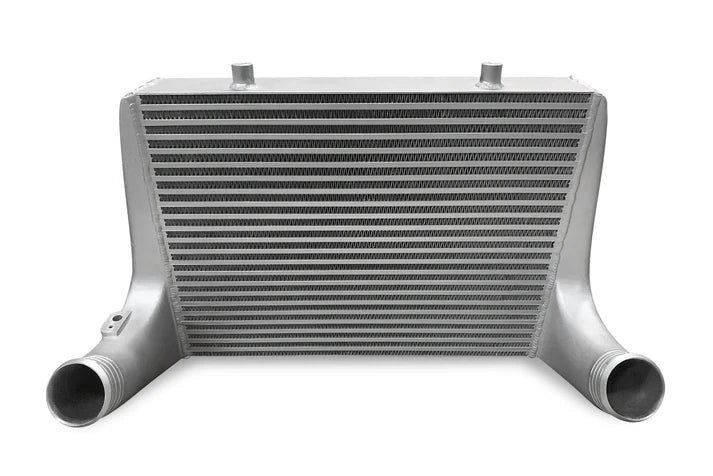

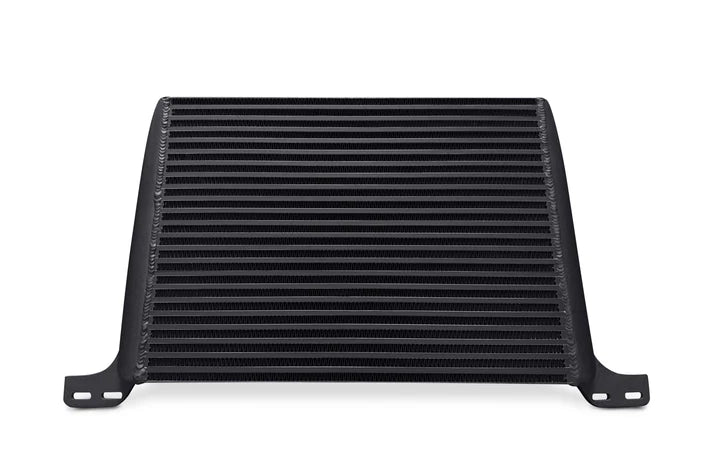

CVF Race Intercooler (2015-2023 Ford Mustang EcoBoost)

Upgraded accessory kit prevents excessive contact with engine components for maximum performance

Direct bolt-on replacement - intercooler pipe upgrade kit is not required but is recommended

Proven to support over 800 WHP

Computer-modeled, CVF-branded cast end tanks ensure significantly better airflow efficiency than welded aluminum counterparts

Over 200% more core volume than stock (21" x 15" x 4")

TIG-welded bar-and-plate construction

Larger ID (inside diameter) of hot-side and cold-side connections allow for increased airflow

CVF Lifetime Warranty

LESS HEAT, MORE POWER

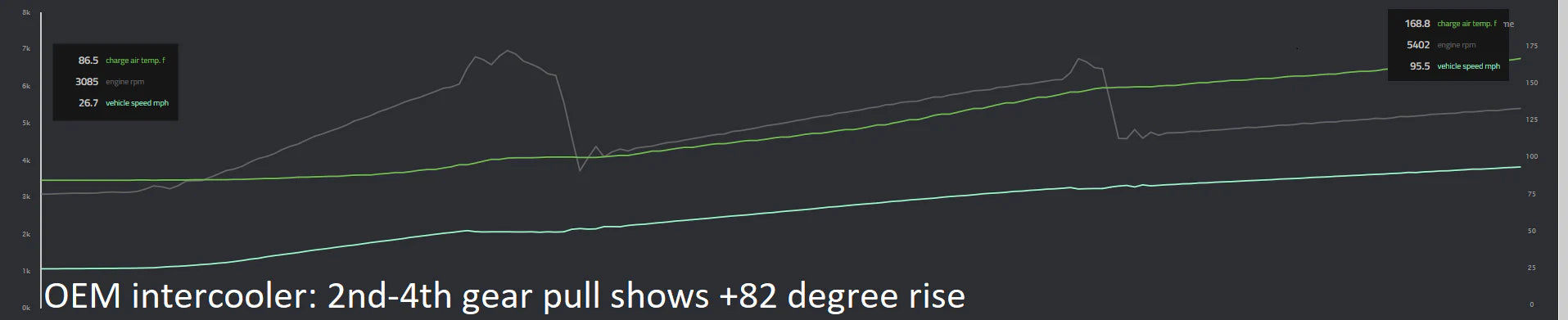

The CVF Race Intercooler for 2015-2023 Ford Mustang EcoBoost is a direct fit replacement that is over 200% larger than the stock unit, featuring a core size of 21" x 15" x 4". As the charts above indicate, during independent testing we've observed a reduction of 92 degrees in Charge Air Temperature where it matters: on the street, and not at the dyno (the same vehicle under similar conditions).

EXCEPTIONAL CONSTRUCTION FOR MAXIMUM EFFICIENCY

Manufactured from top-grade aluminum, the CVF Race Intercooler features a TIG-welded bar-and-plate core design for maximum durability and computer-modeled, fully cast end tanks to ensure better airflow efficiency than the competition's welded aluminum end tanks. Additionally, the computer-aided design optimizes the flow of air, minimizing pressure loss.

APPLICATION AND INSTALLATION

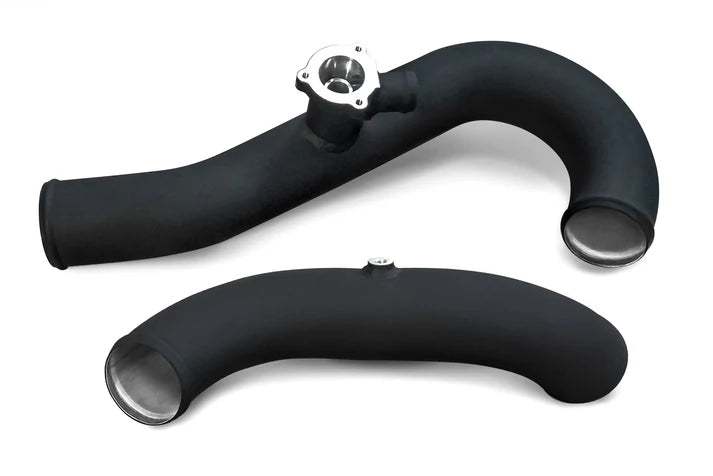

While not required, the CVF Aluminum Intercooler Charge Pipe Kit is recommended. The OEM piping will fit, but the additional kit includes larger couplers for a much smoother installation as the intercooler's inlet/outlet are .25" larger than stock for performance-related design reasons.

The active grille shutters (AGS) have to be removed for installation. There is no check engine light associated with removal of the AGS and they can be placed back on the vehicle if the intercooler is removed.

This part installs on the following vehicles:

• 2015-2023 Mustang 2.3L engines
