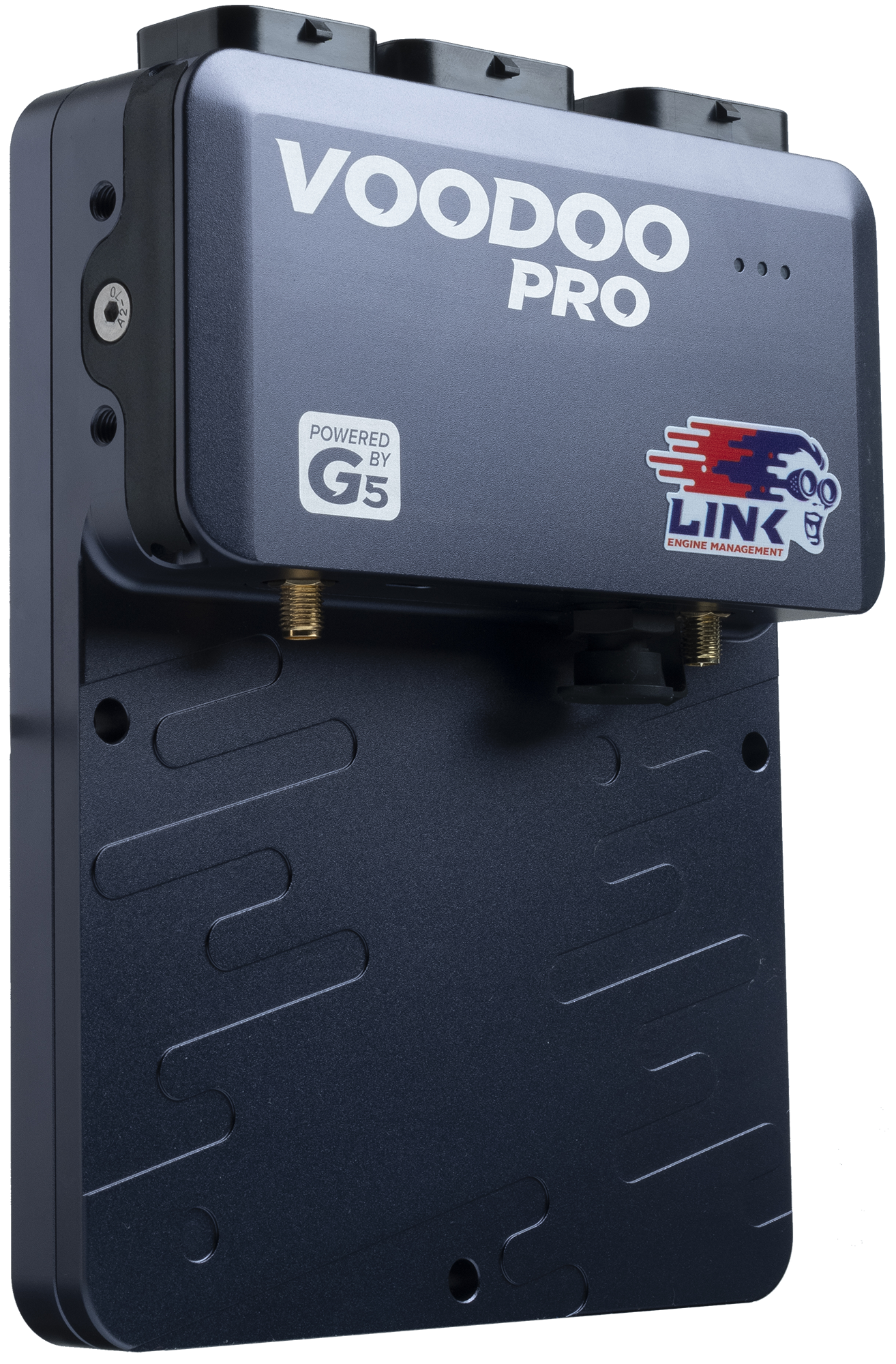

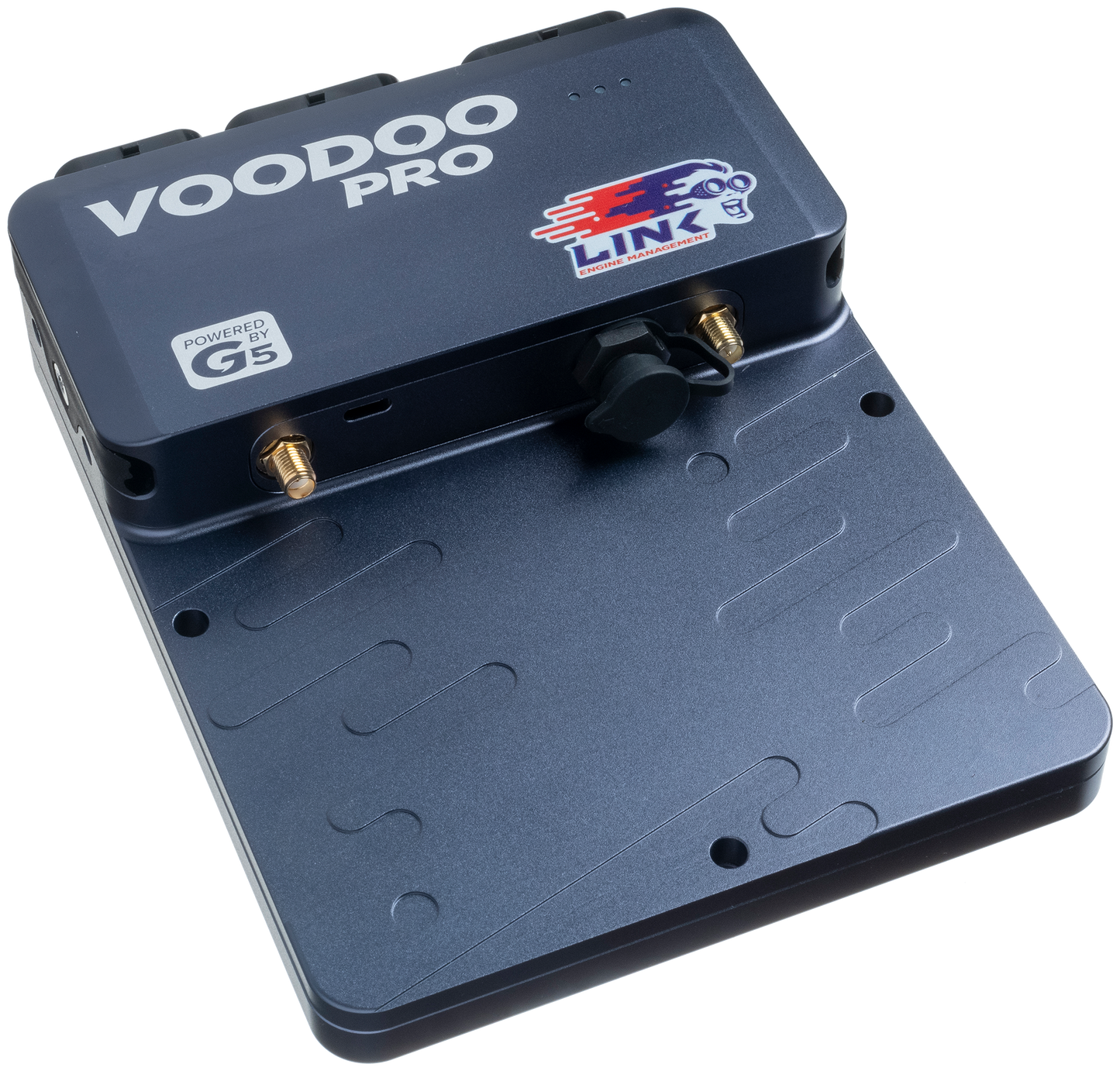

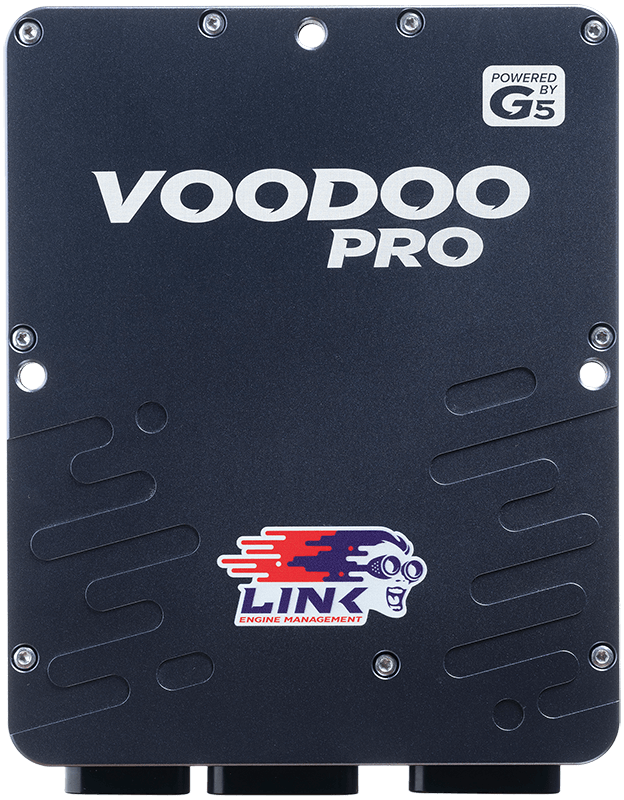

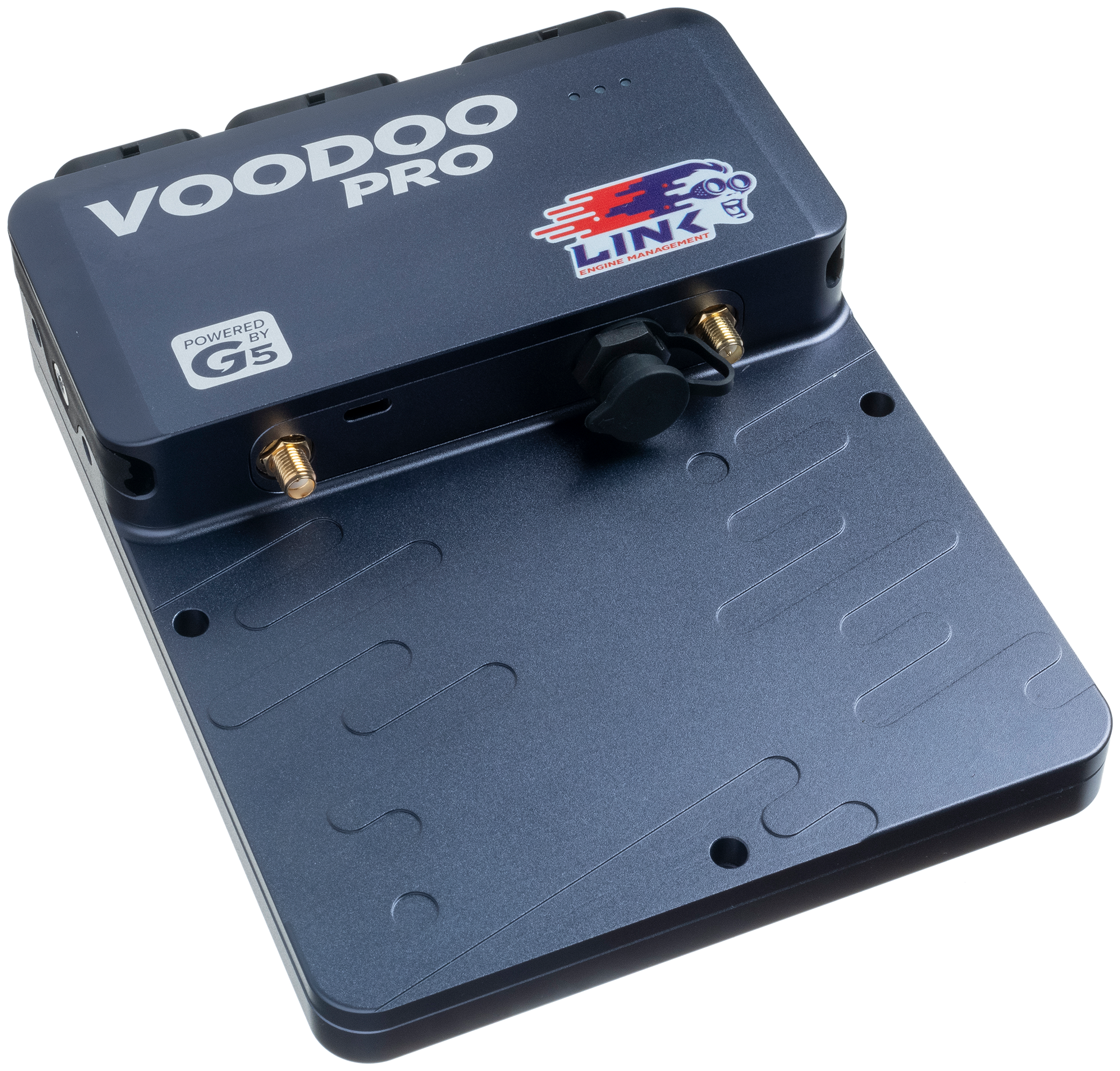

Link ECU G5 Voodoo Pro

Discover the next generation engine management – the G5 Voodoo Pro
is our most advanced, most powerful, most flexible ECU ever.
 G5 Voodoo Pro puts real magic in your hands and opens a new world of
possibilities with the ability to control port plus direct injection, more injector and
ignition drives, advanced communications and many more features including:
 Outputs
 • 16† Injection Drives
 • Injection Drives can run Direct Injection (DI)
using an external OEM or aftermarket driver box.
 • 12† Ignition Drives
 • 14-30* Auxiliary Outputs
 • +5V Sensor power supply
 • Unused Injection and Ignition Outputs can be
used as Auxiliaries
 Inputs
 • 10 Digital Inputs
 • 4 Temperature Inputs
 • 14 Analogue Inputs
 • 2 Trigger Inputs
 • 2 Knock Inputs
 • Unused Temp and Analogue Inputs can be used
as Digital Inputs
 Communications
 • 2 CAN Bus
 • USB-C Tuning Connection
 • Wi-Fi
 • OBDII
 Data Logging
 • 512 MB Onboard Logging Memory
 • 100 kHz Maximum Total Logging Rate
 • 250 Logging Channels
 Features
 • Global Positioning System (GPS)
 • Dual E-throttle Control
 • Flex Fuel
 • Trigger Oscilloscope
 • 3 Axis Accelerometer
 • 45 Gen Purpose Tables
 • Selectable Temp Input Pullups
 • Link CAN Files
 • Flexible engine protection limiters
 • 6D fuel and ignition mapping.
 • CAN Keypad Control
 • VVT Control
 • Both Open or Closed Loop Boost Control
 • Dual Lambda Sensor Control
 • Closed Loop Lambda Auto Mode
 • Dual Closed Loop Lambda
 Motorsport Features
 • Nitrous Control
 • Launch Control
 • Anti-lag
 • Cruise Control
 • Traction Control
 • Race Timer and Power Management
 • Gear Shift Control
 • Paddle Shift Control
 †G5 Voodoo Pro has 12 inj, 8 ign, plus 4 multipurpose (inj, ing, aux) drives (24 total).
 *Number of Auxiliaries depends on number of unused Inj/Ign drives available
